White Rodgers 50A55-3797

Trane Single Stage 120 Volt Ignitor HSI Intergrated Furnace Ignition Control Module Kit

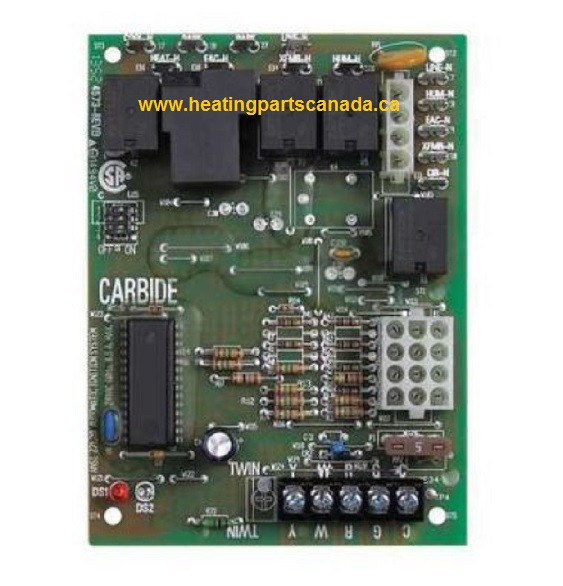

Emerson White Rodgers 50A55-3797, Hot Surface Ignition, Integrated Furnace Control Board. OEM Direct Replacement.
For 120v Ignitors.

For Trane Single Stage Furnaces.
The 50A55-3797 is an automatic gas interrupted ignition control that employs a microprocessor to continually monitor, analyze, and control the proper operation of the gas burner, inducer, and fan.

Features

• • 120 VAC Ignitor Output
• • 120 VAC Humidifier Output
• • 120 VAC Electronic Air Cleaner Output
• • 120 VAC 2-Speed PSC Circulator Output
• • Fuse Protection — 5 Amp
• • Furnace Status LED
• • Heat Fan OFF Delay (Dipswitch Selectable)
• • Y, W, R, G, C

Replaces Trane control part numbers:

CNT02789, CNT02891, CNT03799, D341122P01, D341235P01, D341235P03, 50A55-474, 50A55-476, 50A55-3797, 50A55-571
